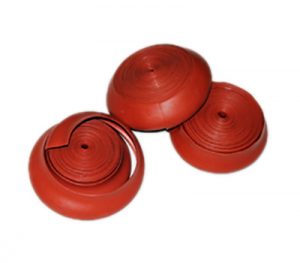

CYG-RSD heat shrink insulation tape is designed with hot-melt adhesive , which is used for high and low voltage switchgear bus line of insulation and protection or Power cable sheath damage repair to up 36KV.
Specification
|
Items |
Test Method |
Specifications |
|
Tensile strength |
ASTM D 2671 | >12 MPa |
| Ultimate elongation | ASTM D 2671 |
≥400% |
|
Heat aging Tensile strength Ultimate elongation |
136℃, 168 hrs. | >10 MPa >450% |
| Dielectric strength | IEC 243 |
≥20kV/mm |
|
Dielectric constant |
IEC 250 | ≤3.5 |
| Volume resistance | IEC 93 |
≥10¹⁴Ω .cm |
|
Copper corrosion |
ASTM D 2671/120℃,168hr. |
No corrosion |
|
Cold bend |
ASTM D 2671/-40℃,4hrs. | No cracking |
| Water absorption | ASTM D570 |
<0.5% |
Size
| Item No. | voltage class(kv) | Width(mm) | Thickness(mm) | Packing length(mm) |
| CYG-RSD-01 | 1 | 50 | 0.40~0.50 | 5000 |
| CYG-RSD-15 | 15 | 50 | 0.80~1.00 | 5000 |
| CYG-RSD-36 | 35 | 50 | 1.40~1.80 | 5000 |
| CYG-RSD-36(S) | 35 | 50 | 1.40~1.80 | 5000 |
REMARKS :
1.CYG-RSD-36(S) IS SPIRAL SHAPE
The heat shrink terminations and joints are available for indoor & outdoor applications for single core and 3-core cables up to 36kV. the heat shrink cable accessories will provide excellent insulation, sealing and mechanical protection for power cables.
