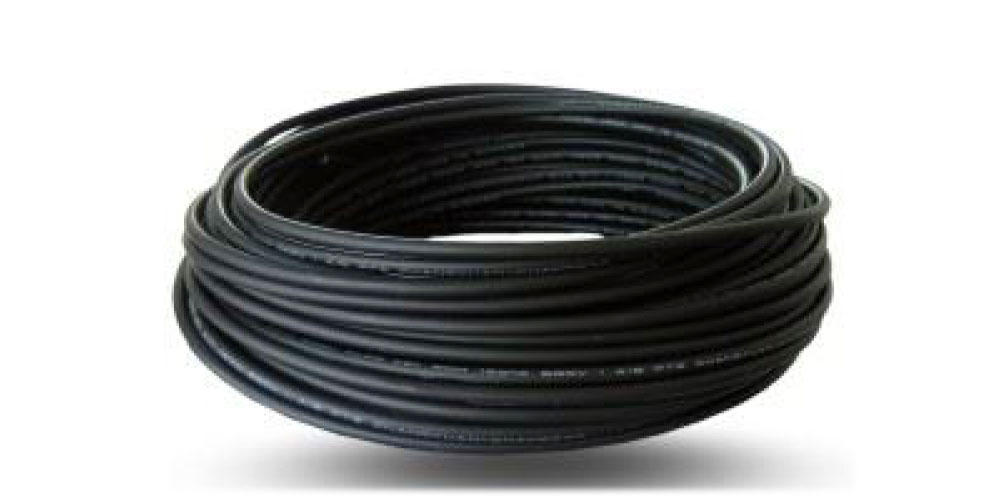

Material: cross-linked modified polyolefin resin
Shrinkage rate: not shrink
Features:
- soft, flexible;
- Halogen-free, environmentally friendly products to meet the “RoHS” and “Sony”standards, and sustained and effective control of environmental substances through a third party, to obtain UL RSCS certification is an upgrade replacement for PVCcasing;
- Can replace poly PVC sleeve (except transparent);
- Low smoke, flame retardant products to meet UL224 VW-1 flammability rating andJapan JQA F-mark certified flammability rating;
- Excellent insulation, heat resistance, voltage performance.
Applications:Widely used in electronic components, home appliances, automobiles,machinery, toys, stationery and other fields.
Introduction
| Item | Test method | Indicator | Typical values |
| Temperature rating | UL224 | 105℃ | 105℃ |
| Length rate of change | ASTM D2671 | ≤±5% | -3% |
| Tensile Strength | ASTM D638 | ≥10.4MPa | 10.4MPa |
| Elongation at break | ASTM D638 | ≥200% | 400% |
| Hot air aging test | 158℃/168h | – | – |
| Thermal aging Tensile strength | ASTM D638 | ≥7.3MPa | 9.3MPa |
| Heat aging elongation at break | ASTM D638 | ≥100% | 200% |
| Voltage level | UL224 | 300V/600V | 300V/600V |
| Volume resistivity | ASTM D2671 | ≥10*10¹²Ω·cm | 3.6*10¹²Ω·cm |
| Breakdown Voltage | UL224 | 2500V（60s）No breakdown | No breakdown |
| Hot shock | UL224/250℃±3℃/4h | Does not drip, does not flow, does not crack | Qualified |
| Cold bending | UL224/-30℃/1h | Unlobed | Qualified |
| Copper Corrosion | UL224/158℃/168h | No corrosion | No corrosion |
Specification
| Specification | Finished inner diameter(mm) | Wall thickness(mm) 300V |
| BΦ0.9 | 0.95±0.05 | 0.38±0.05 |
| BΦ1.4 | 1.45±0.05 | 0.38±0.05 |
| BΦ2.0 | 2.05±0.05 | 0.38±0.05 |
| BΦ2.5 | 2.55±0.05 | 0.38±0.05 |
| BΦ3.0 | 3.10±0.10 | 0.50±0.06 |
| BΦ3.4 | 3.50±0.10 | 0.50±0.06 |
| BΦ4.0 | 4.10±0.10 | 0.50±0.06 |
| BΦ4.8 | 4.90±0.10 | 0.50±0.06 |
| BΦ5.8 | 5.90±0.10 | 0.50±0.06 |
| BΦ6.3 | 6.40±0.10 | 0.50±0.06 |
| BΦ6.8 | 6.90±0.10 | 0.50±0.06 |
| BΦ7.3 | 7.40±0.10 | 0.50±0.06 |
| BΦ7.8 | 7.90±0.10 | 0.50±0.06 |
| BΦ8.8 | 8.90±0.10 | 0.50±0.06 |
| BΦ9.7 | 9.85±0.15 | 0.50±0.06 |
| BΦ10.6 | 10.8±0.20 | 0.50±0.06 |
| BΦ11.6 | 11.8±0.20 | 0.50±0.06 |
| BΦ12.6 | 12.8±0.20 | 0.62±0.06 |
| BΦ13.6 | 13.8±0.20 | 0.62±0.06 |
| BΦ14.6 | 14.8±0.20 | 0.62±0.06 |
| BΦ15.6 | 15.8±0.20 | 0.62±0.06 |
| Specification | Finished Inner Diameter(mm) | Wall Thickness(mm) 600V |
| BΦ0.9 | 0.95±0.05 | 0.50±0.06 |
| BΦ1.4 | 1.45±0.05 | 0.62±0.06 |
| BΦ2.0 | 2.05±0.05 | 0.62±0.06 |
| BΦ2.5 | 2.55±0.05 | 0.62±0.06 |
| BΦ3.0 | 3.10±0.10 | 0.62±0.06 |
| BΦ3.4 | 3.50±0.10 | 0.62±0.06 |
| BΦ4.0 | 4.10±0.10 | 0.62±0.06 |
| BΦ4.8 | 4.90±0.10 | 0.62±0.06 |
| BΦ5.8 | 5.90±0.10 | 0.62±0.06 |
| BΦ6.3 | 6.40±0.10 | 0.62±0.06 |
| BΦ6.8 | 6.90±0.10 | 0.62±0.06 |
| BΦ7.3 | 7.40±0.10 | 0.62±0.06 |
| BΦ7.8 | 7.90±0.10 | 0.62±0.06 |
| BΦ8.8 | 8.90±0.10 | 0.62±0.06 |
| BΦ9.7 | 9.85±0.15 | 0.62±0.06 |
| BΦ10.6 | 10.8±0.20 | 0.62±0.06 |
| BΦ11.6 | 11.8±0.20 | 0.62±0.06 |
| BΦ12.6 | 12.8±0.20 | 0.75±0.06 |
| BΦ13.6 | 13.8±0.20 | 0.75±0.06 |
| BΦ14.6 | 14.8±0.20 | 0.75±0.06 |
| BΦ15.6 | 15.8±0.20 | 0.75±0.06 |
